SCS-SCS gateway, smart way to control your house
Additional DIN devices SCS-SCS gateway (extension)
- Allows the extension of the installation or the integration between different functions
- Suitable for larger installations
- 2 DIN modules 17.5 mm

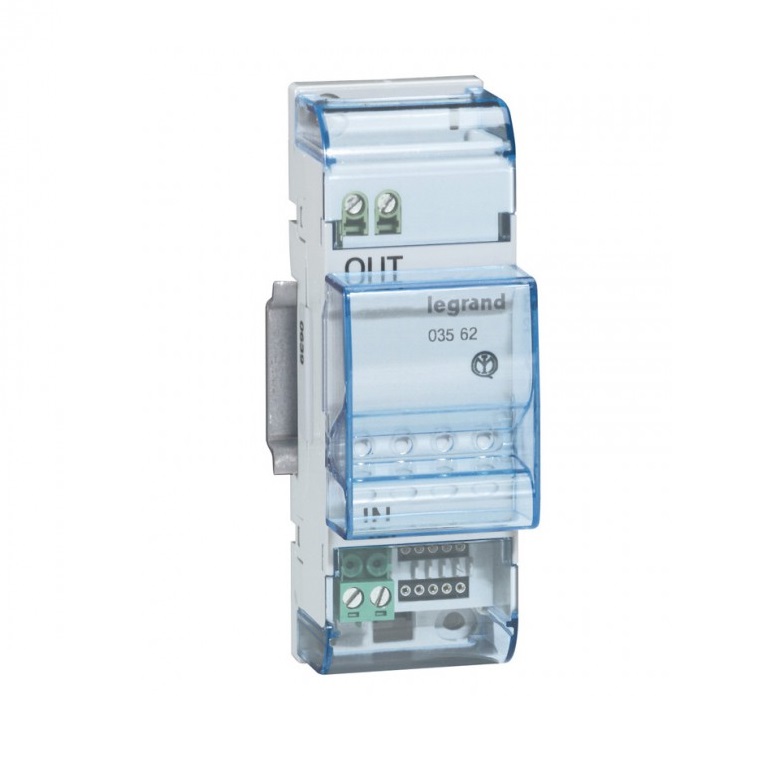

The SCS/SCS gateway is an interface that provides communication among BUS systems with SCS technology, even if they perform different functions. The interface has two BUS clamps, IN and OUT.
On the front is a C key for virtual configuration and a LED for the notification of:
- Correct power supply and configuration (on steady)
- BUS not detected (off)
- configuration not detected or incorrect configuration (flashing).
The device may operate in different modes:
- Physical expansion for MY HOME and Lighting Management: can increase the total BUS length or exceed the absorption limit of 1200 mA for the individual power supply.
- Logical expansion for MY HOME: can increase the number of devices of a system, which is 175 (max 11 in rooms defined with A = 0 to 10 and 16 light points with PL = 0 to 15). Address A = 0, PL = 0 is not permitted.
- Burglar alarm/automation interface for MY HOME: it allows communication between these two systems.
- Public riser: it provides alarm event supervision for the common parts of the video door entry system.
- Galvanic separation for MY HOME: can interface two different functions (ex.: Sound system with Automation).
